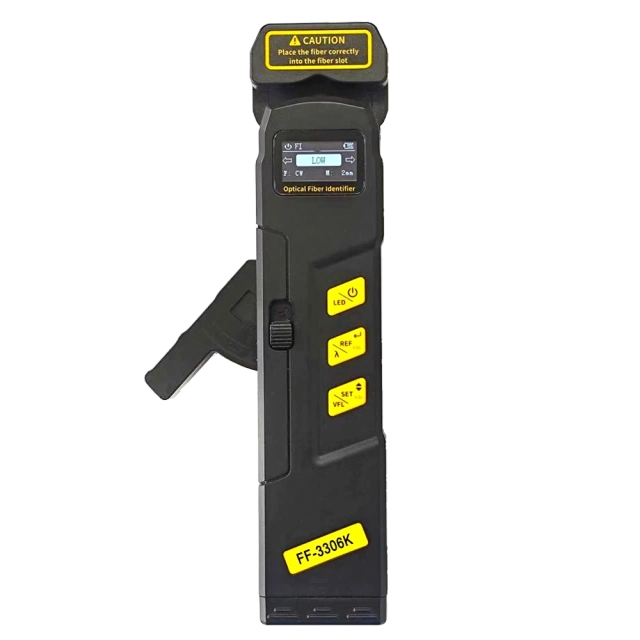

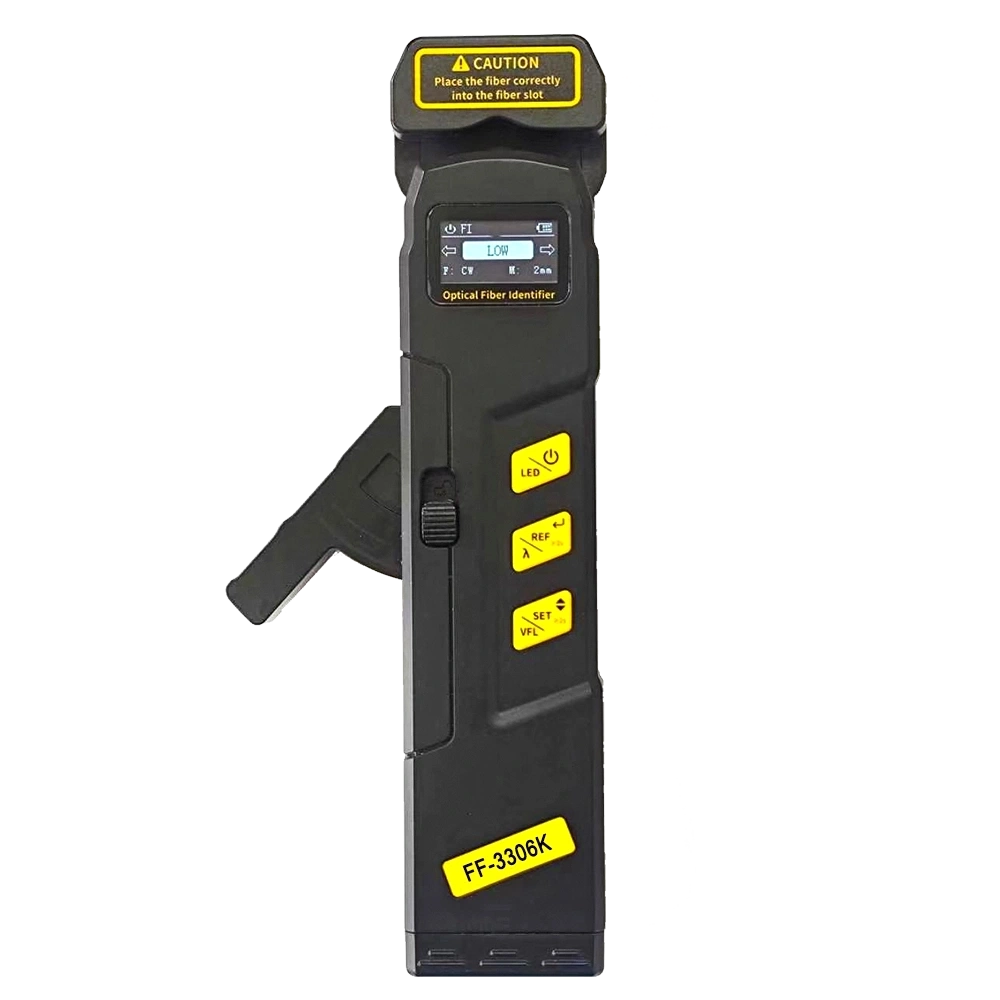

The FF-3306K optical fiber identifier (OFI) utilizes macro-bending technology to perform non-destructive testing on optical fibers. It accurately identifies fiber links at any point without interrupting live services. Additionally, it detects the presence of optical signals, measures optical power, and determines signal direction. This tool is essential for fiber tracing and isolating specific fibers during maintenance, installation, and cabling.
Testing Capabilities
Compatible with 2mm, 3mm, 900µm, and 250µm fibers without requiring physical clamp changes (features software-calibrated power).
Detects optical signal strength, signal direction, and carrier frequencies (270Hz, 330Hz, 1kHz, 2kHz).
Delivers high testing sensitivity.
Design & Usability

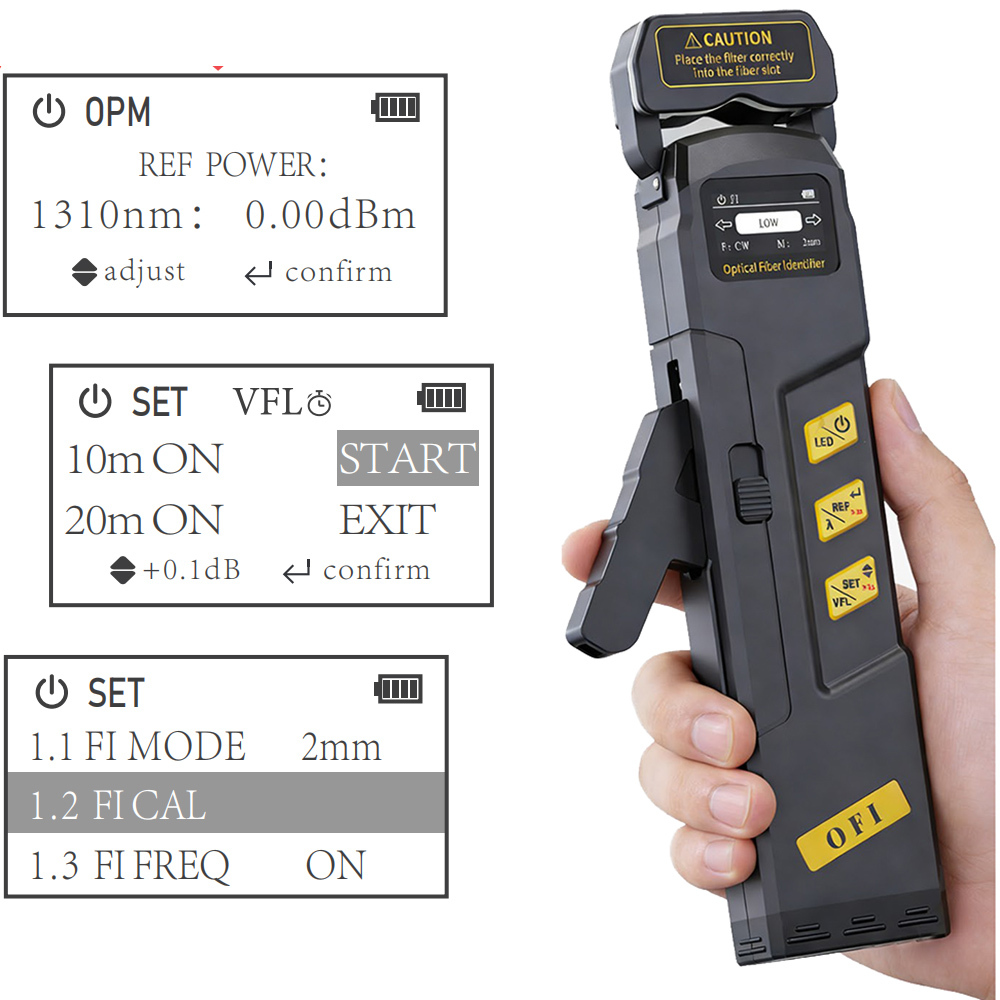

High-definition OLED display provides clear visibility in dark environments without extra lighting.
Ergonomic grip clamp designed to prevent fatigue during long-term use.
Switchable alert notifications (buzzer and vibration modes).
Integrated VFL & Power Features
Standard Visual Fault Locator (VFL) with a 2.5mm universal interface.
Eco-friendly VFL features include a timer switch and stepless power adjustment.
Powered by a built-in, low-power-consumption lithium battery.
